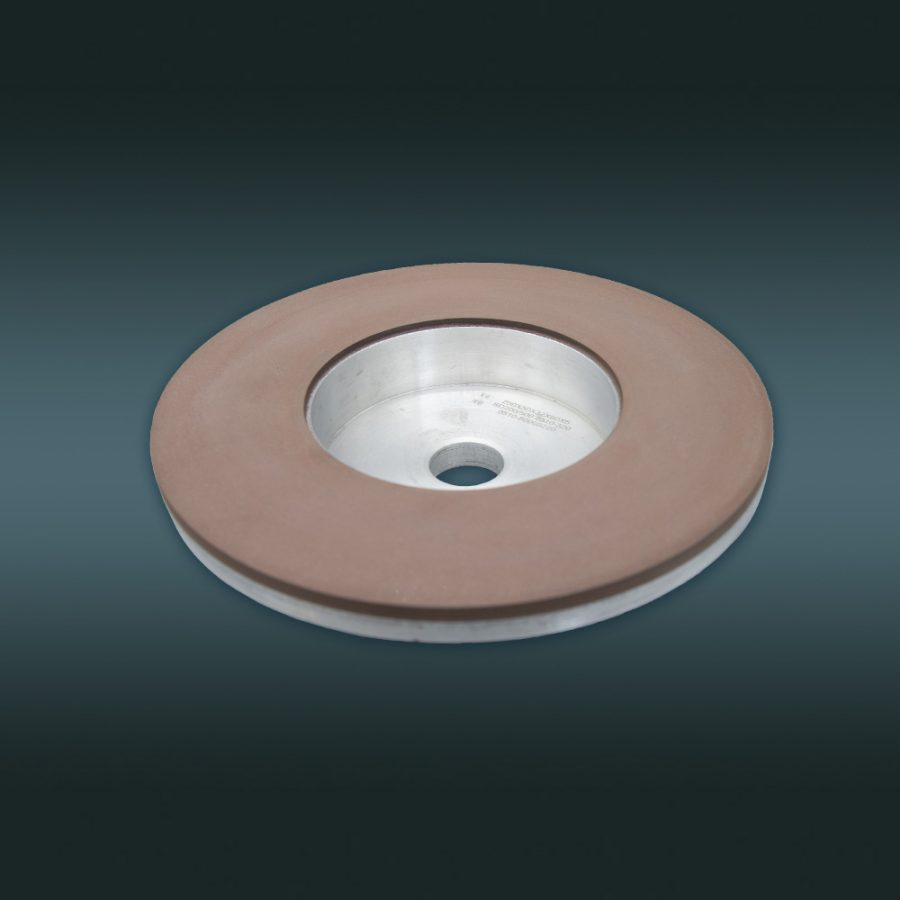

Resin Diamond Grinding Wheel for Grinding Soft Magnetic Materials
Resin Diamond Grinding Wheel for Grinding Soft Magnetic Materials

Resin Diamond Grinding Wheel for Grinding Soft Magnetic Materials

  • Used for grinding various soft magnetic materials, like, ferrite soft magnetic materials, and metal soft magnetic materials.

    Sharp, efficient, and high accuracy.

    Minimum Order Quantity: 20pcs

    Net Weight: 1.6KG

    Payment: 30% advance

Whatspp:+86 18168916667
E-mail:kingrong@weiert-ceramics.com

Detail

Description
Resin diamond grinding wheels used for soft magnetic materials have good polishing effects, sharp grinding wheels, and are not easily clogged during the grinding process. It has good self-sharpening and generates less heat during the grinding process, reducing the occurrence of workpiece burns during the grinding process.


Specifications

Place of Origin China
Brand Name Jiangsu Xingzuan Superhard Material Technology Co., Ltd
Certification CNIPA
Abrasive Diamond
Bond Resin bond
Abrasive Grit Size 200/500
Model Number 12C2
Specification 250*50*32*60*5
Outside Diameter 250mm
Hole 32mm
Total Thickness 50mm
Net Weight 1.6KG
Minimum Order Quantity 20pcs
Delivery Time 30 days from advance payment
Supply Ability Support customization
Payment 30% advance



Applications

    It can effectively grind and process soft magnetic materials, maintaining the flatness and accuracy of the processed surface. Ferrite and other soft magnetic materials are widely used in fields such as electronics, communication, and computers, and resin diamond grinding wheels can meet the demand for high-precision machining in these areas.



Competitive Advantage

  • It can provide better machining results when grinding soft magnetic materials.
  • It can reduce processing costs and improve processing efficiency.
  • The low-temperature curing characteristic shortens the production cycle, and the equipment and supply processes are relatively simple.
