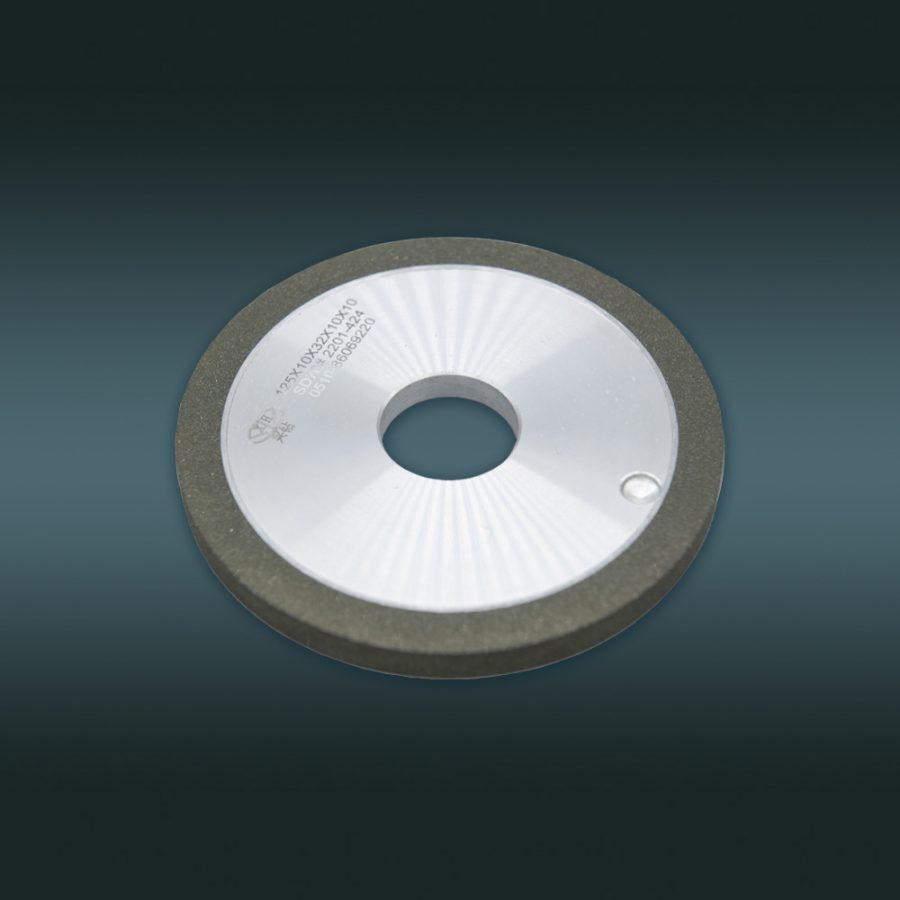

Parallel resin diamond grinding wheel
Parallel resin diamond grinding wheel

Parallel resin diamond grinding wheel

  • Suitable for processing hard alloys, cutting tools, tungsten steel, stainless steel, ceramics, glass, and semiconductor materials.

    High grinding efficiency, good self sharpening, low heat generation, and high stability.

    Minimum Order Quantity: 10pcs

    Net Weight: 350g

    Payment:30% advance

Whatspp:+86 18168916667
E-mail:kingrong@weiert-ceramics.com

Detail

Description
Parallel resin diamond grinding wheel is an important grinding tool. Its grinding accuracy is high, and its parallel structure ensures that it can better control the flatness of the grinding process. At the same time, the elasticity of the resin binder helps to buffer the impact force generated during grinding, reduce surface damage to the parts, and lower the wear and tear of the grinding wheel itself.



Specifications

Place of Origin China
Brand Name Jiangsu Xingzuan Superhard Material Technology Co., Ltd
Certification CNIPA
Abrasive Diamond
Bond Resin bond
Model Number 1A1
Abrasive Grit Size 70#
Specification 125*10*32*10*10
Outside Diameter 125mm
Hole 32mm
Net Weight 350g
Minimum Order Quantity 10pcs
Delivery Time 30 days from advance payment
Supply Ability Support customization
Payment 30% advance



Applications

  • Used for grinding, slotting, and sharpening of hard alloy cutting tools, molds, drill bits, etc.
  • Perform operations such as external cylindrical grinding and surface grinding on tungsten steel materials.
  • Used for grinding, polishing, etc. of stainless steel materials.
  • Used for cutting, grinding, and polishing ceramic tiles, ceramic tubes, ceramic crafts, etc.
  • Cut, grind edges, drill holes, etc. on glass.
  • Used for slicing, grinding, polishing, etc. of semiconductor silicon wafers, gallium arsenide and other materials.
  • Perform external cylindrical grinding on various shaft components.
  • Used for gear profile grinding, tooth surface polishing, etc.
  •

    Competitive Advantage

    • High grinding efficiency, which can maintain the sharpness and grinding efficiency of the abrasive.
    • Good self sharpening ability and long retention time of cutting ability.
    • Elastic, able to better fit the surface of the workpiece and reduce grinding vibration.
    • Low heat generation reduces the risk of burns and deformation of the workpiece due to overheating.
