11V9 Resin diamond grinding wheel
11V9 Resin diamond grinding wheel

11V9 Resin diamond grinding wheel

  • Suitable for grinding mechanical parts such as hard alloys, ceramics, glass, shaft components, flanges, etc.

    High grinding efficiency, good self sharpening, strong formability, and high precision.

    Minimum Order Quantity: 30pcs

    Net Weight: 280g

    Payment: 30% advance

Whatspp:+86 18168916667
E-mail:kingrong@weiert-ceramics.com

Detail

Description

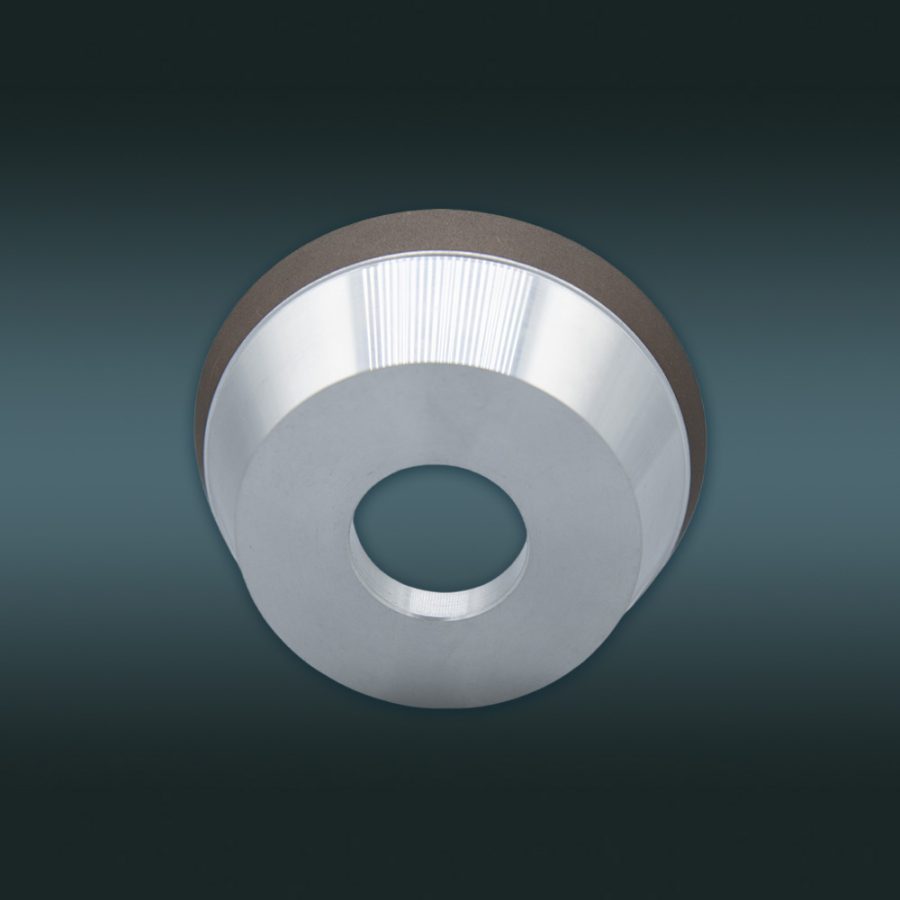

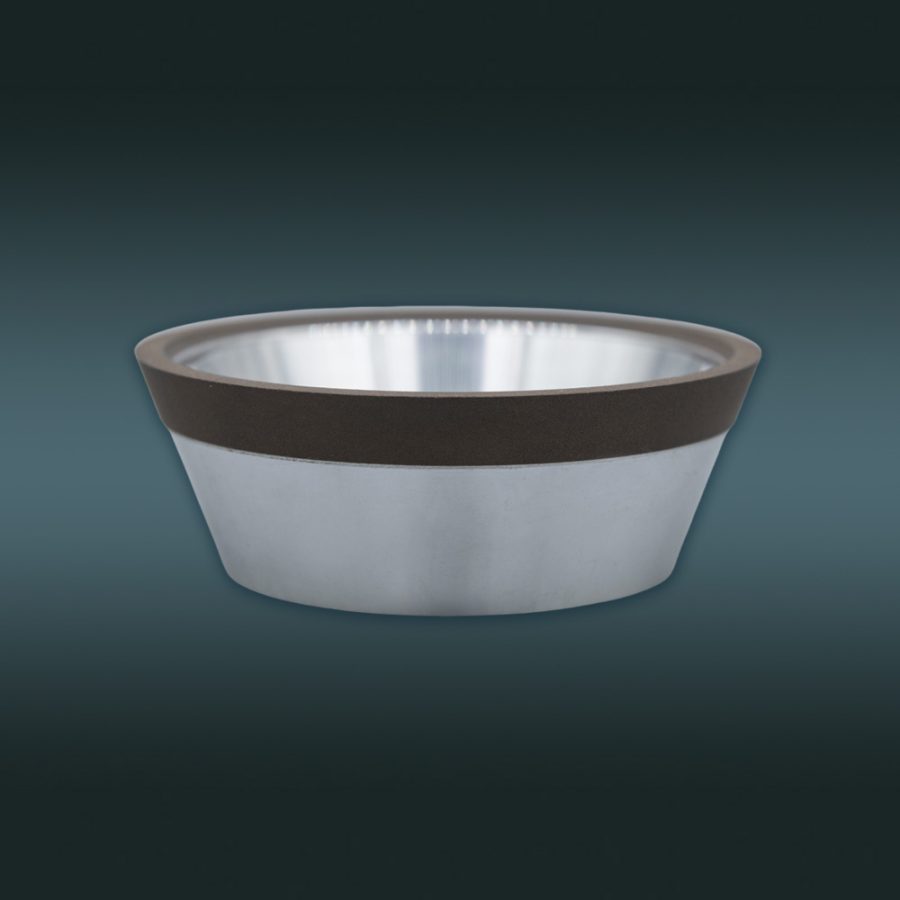

11V9 resin diamond grinding wheel is a bowl-shaped diamond grinding wheel that can achieve high machining accuracy, ensure the dimensional and shape accuracy of the end face, and meet the high precision requirements for workpiece end face grinding. Suitable for grinding mechanical parts such as hard alloys, ceramics, glass, shaft components, flanges, etc.


Specifications

Place of Origin China
Brand Name Jiangsu Xingzuan Superhard Material Technology Co., Ltd
Certification CNIPA
Abrasive Diamond
Bond Resin bond
Abrasive Grit Size D64
Model Number 11V9
Specification 100*35*31.75*5*10
Outside Diameter 100mm
Hole 31.75mm
Total Thickness 35mm
Net Weight 280g
Minimum Order Quantity 30pcs
Delivery Time 30 days from advance payment
Supply Ability Support customization
Payment 30% advance



Applications

  • Used for the manufacturing of hard alloy milling cutters, drills, reamers, and other cutting tools. Can be used for processes such as slotting, corner cleaning, and grinding.
  • Used for end face grinding of molds to ensure dimensional accuracy and flatness of the mold.
  • End face grinding can be performed on mechanical parts such as shafts and flanges to improve the smoothness and accuracy of the end face.
  • Can meet the high-precision grinding requirements of electronic component bases, chip packaging end faces, etc.
  • Used for grinding metal ceramic materials, as well as ultra heat-resistant stainless steel, ceramic products, glass products, etc.



Competitive Advantage

  • High grinding efficiency, able to quickly remove materials and shorten processing time.
  • Good self sharpening, low heat generation, not easy to block, can reduce workpiece burns.
  • Strong formability, able to meet the grinding needs of different shapes.
  • High precision can ensure the dimensional and shape accuracy of the end face.
